Horse Construction Products Application Demonstration Model visually exhibits the standard construction process and application effect of carbon fiber and structural reinforcement materials on beams, slabs and columns. It displays crack repair, base treatment, CFRP pasting and overall structural strengthening solutions for engineering presentation and technical training.

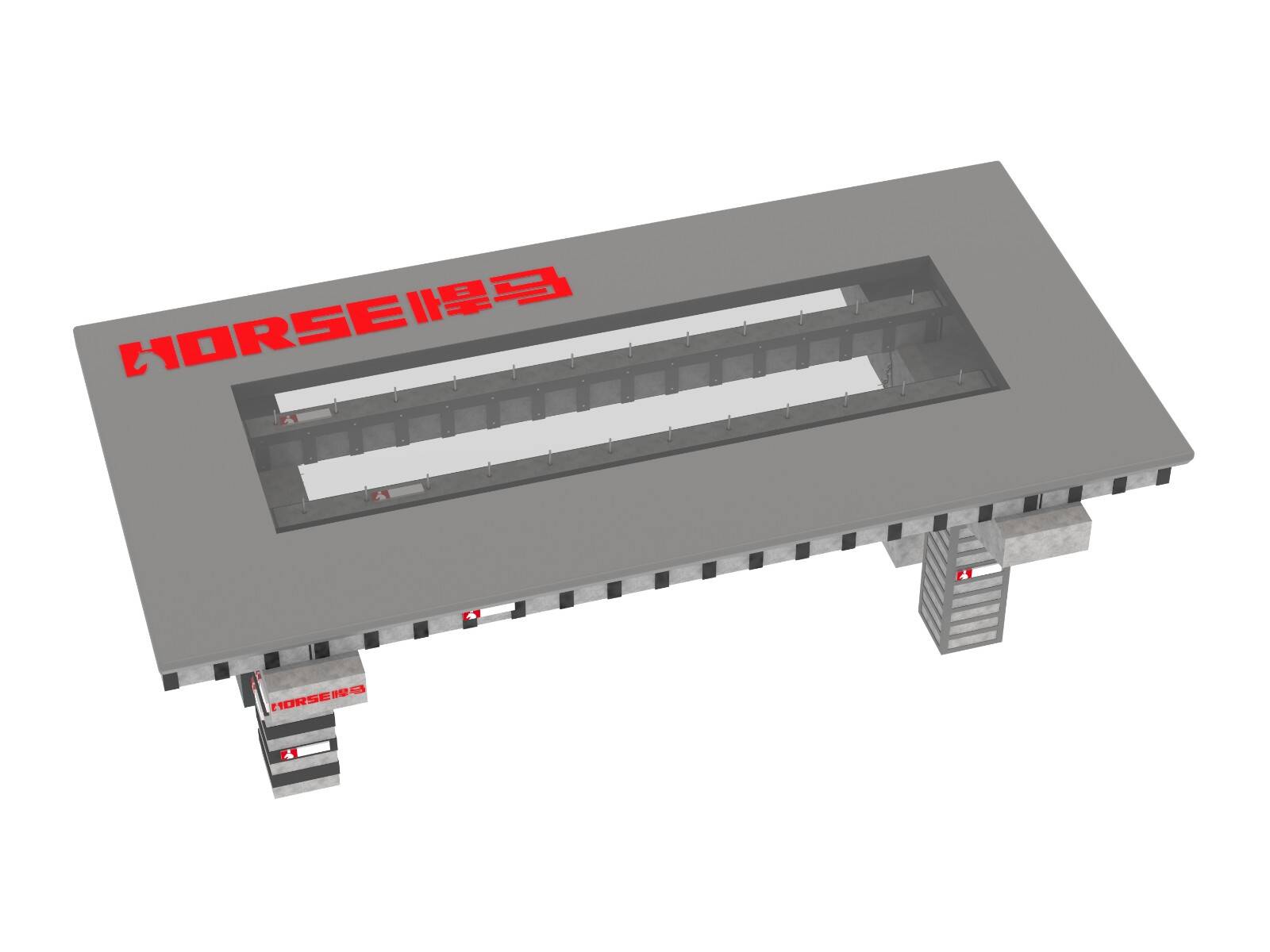

from the pic

we can see anchor epoxy application

from the pic

we can see steel bonding on beam

segmental brige adhesive for precast concrete

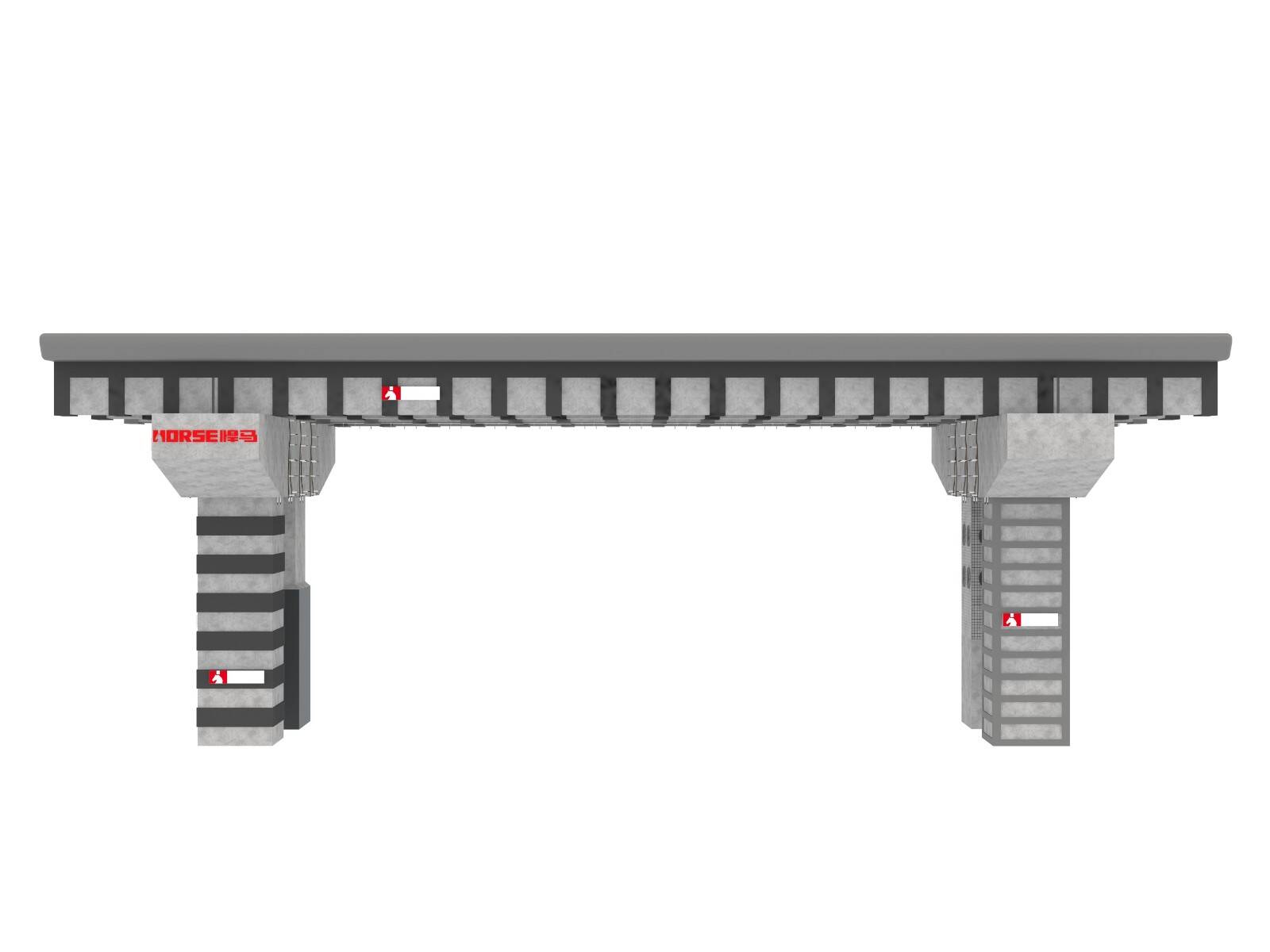

the left column, we can see FRP wrap

the righ column, we can see steel jacketing

from the pic

we can see crack injection first, then apply prestressed CFRP laminate on the girder

the right column, FRP jackets

the left column is CFRP wrap

from the pic

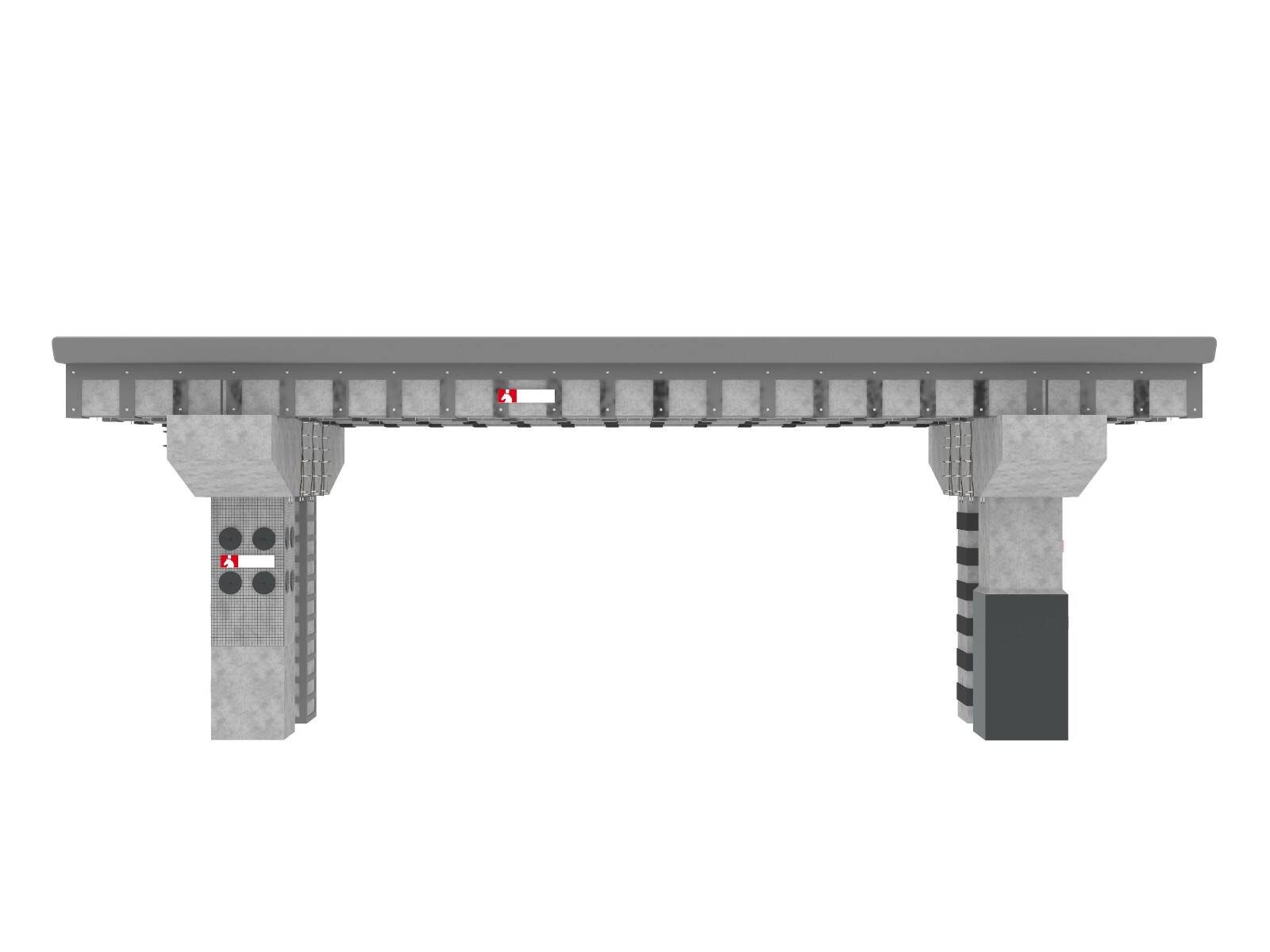

the left column bonding carbon fiber mesh, the round one is carbon fiber anchor

the right is FRP jackets

from the pic

the top is crack injection, the apply prestressed carbon plate circular anchors system
